Single chain wheel clamp type knife gate valve

•

PZL43H/Y series Single chain wheel clamp type knife gate valve Short length structure saves the mate…

A gate valve, an overview:
PZL43H/Y series Single chain wheel clamp type knife gate valve Short length structure saves the material, can make the whole pipeline system greatly reduce weight. Small occupied space, can effectively support the pipeline strength, can reduce the possibility of pipeline vibration. The selection of austenitic stainless steel, corrosion resistant performance is greatly improved, which can effectively prevent leakage due to corrosion caused by the gate. Compact design, small occupying space, light weight, easy installation, wear and anti blocking measures to perfect, easy maintenance, long service life. Widely used in food and beverage, paper and pulp industry, industrial sewage, city sewage treatment, chemical plant, bulk materials, fly ash processing industry.

Two, Single chain wheel clamp type knife gate valve The characteristics of:
1, ultra short length structure saves the material, can make the whole pipeline system greatly reduce weight;
2, small occupied space, can effectively support the pipeline strength, can reduce the possibility of pipeline vibration;
3, the gate selection of austenitic stainless steel, corrosion resistant performance is greatly improved, which can effectively prevent the gate seal leakage caused by corrosion;
4, packing with flexible PTFE, reliable sealing, flexible operation;
5, the gate with the knife, can effectively brake off all kinds of debris in the medium.
Three, Single chain wheel clamp type knife gate valve Technical data:
Nominal pressure: 0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa, 150Lb;
Nominal diameter: DN50-1200mm NPS 2 "-20";
Suitable temperature: -38-+650 degrees (the specific temperature range as the sealing material and the properties of the media set);
Flange: ANSI B16.5, GB/T9113, JB/T79, HG, SH, JIS, DIN, NF, BS;
Main material: WCB, ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, CF8, CF8M, CF3, CF3M;
Seal type: hard seal, soft seal;
Leakage: Seal: D (liquid level 0.1 * DN mm3/s): a soft seal (zero leakage);
Suitable medium: syrup, pulp, sewage, slurry, coal ash and slag water mixture;
Accessories: mounting flange.
Four, Single chain wheel clamp type knife gate valve Installation notes:
1, the installation must be inspected before the valve cavity and the sealing surface and other parts, there is dirt or sand does not allow attachment;
2, all bolts evenly tightened requirements;
3, check the packing requirements of pressed parts, both to ensure the tightness of packing, but also to ensure the open and flexible plate;
4, the user must check valve type before installing the valve, connect the flow of medium size and attention to ensure consistency with the requirements of the valve;
5, the user to install the valve, must be necessary to install the valve drive space dying;
6 wire drive device shall be carried out according to a circuit diagram;
7, the valve must be regularly maintained, not free to collision and extrusion, so as not to affect the sealing performance.
Five, the main performance specifications:

Six, main parts material:

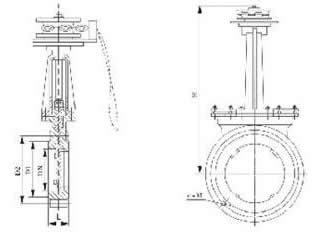

Seven, appearance structure diagram and the main external and connecting dimensions (mm)

Eighth, ordering:
1, please carefully before ordering the understanding of the product chain sprocket single clip type knife gate valve, clearly marked specifications, types and materials, pressure, quantity.
2, the occasion is very important when using more complex or the environment when you try to provide design drawings and detailed parameters by Zhongwei control of our experts audit checks for you.
3, order the knife type valve, please fill out the order with the unit, receiving unit, the name of the payment unit, address (including the provincial, city, District, street, and No.), telephone, bank account, and representative.
4, the company's products are all order cash on delivery or delivery.
